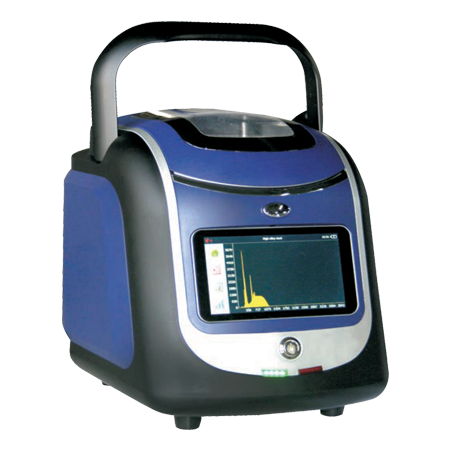

KN-5059 Portable Energy Dissipation X-ray Fluorescence Spectrometer
Overview
The new KN-5059 Portable Energy Dispersion X- ray Fluorescence Spectrometer is designed for the onsite analysis of Sulfur in oils. This model fully meets onsite elements test in oils for the raw materials, production control and finished products inspections. The outstanding advantages of the KN-5059 Light, small, one key test. The operator can perform the onsite analysis at anytime and anywhere.
Applicable Standard
1. ASTM D5059 Standard Test Methods for Lead in Gasoline by X-Ray Spectroscopy
2. ASTM D4294 Standard Test Method for Sulfur in Petroleum and Petroleum Products by Energy Dispersive X-ray Fluorescence Spectrometry
Testing Result
After testing, the data interface will show up
The data interface includes the testing results and statistics.

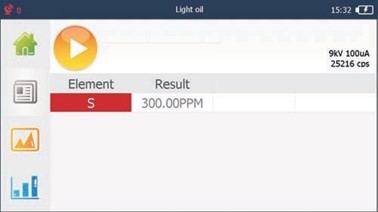

Result

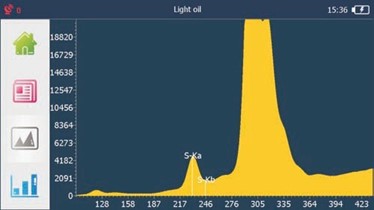

Spectrum

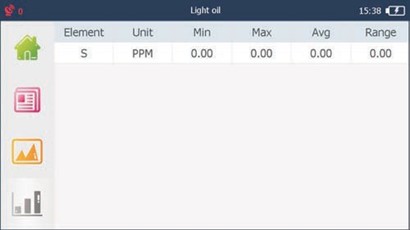

Statistics
Instrument features
1. Small size and easy to carry
2. Net weight:4.5Kg. The instrument is convenient to carry
Power indicator
1. Green indicator is on when the machine is power on. Red in the indicator is on when the machine is testing.
2. With the built-in camera
3. The sample image can be saved and put into the testing report.
4. Fully meet MARPOL international Convention on shipping Fuel Oil Regulation ISO8217-2010 for S analyze of ISO 8754
5. Portable Energy Dispersion X- ray Fluorescence Spectrometer
Technical specification
1. Measurement range: From P to U
2. Testing samples: Solid, liquid and powder
3. Content range: 1ppm—99.99%
4. Testing method: EDXRF
5. Detector: SDD detector, the lowest resolution reach to 125eV
6. Working Temperature: -20℃～+50℃
7. Humidity≤90%
8. Detection limit: 1ppm for Sulfur in fuel oil
9. Operation: One key test
10. Testing time: 30-130s
11. Size: 212*258*258mm
12. Weight＜4.5kg
